Specifications |
|
Machine Capacity |
Unit |
STD |
|
Chuck Size |
mm |
135 |
|
Max. Turning Dia |
mm |
130 |
|
Max. Turning Length |
mm |
180 |
|
Swing over bed |
mm |
180 |
|
Axis - Slides |
|
|
|
Slant bed inclination |
Deg |
45º |
|
Max. travel ( Stroke)
X-axis & Z-axis |
mm |
140 & 250 |
|
Rapid traverse X-axis &
Z-axis |
M/min |
28 |
|
Feed rate (max.) |
M/min |
0
- 5000 |
|
Ball Screw diameter &
Pitch |
mm |
Dia 32 x 10 |
|
Spindle |
|
|
|
Spindle Nose |
Rpm |
Flat 110 dia |
|
Speed Range |
mm |
50
- 4000 |
|
Bore Through spindle |
mm |
36 |
|
Bar Capacity |
kw |
25 |
|
Spindle Power ( Cont. /
15 min. ) |
|
3.7 / 5.5 |
|
Turret |
|
|
|
Number of station |
Nos |
8
(BTP-63) |
|
Tool cross section |
mm |
20
x 20 |
|
Boring bar diameter |
mm |
32 |
|
Repeatability |
Sec |
+2 |
|
Linear tools |
Nos |
|
|
Tail Stock |
|
|
|
Quill |
mm |
70 |
|
Quill Stroke |
mm |
70 |
| On
guide stroke |
mm |
140 |
|
Taper |
|
MT-3 |
|
Others |
|
|
|
Dimensions (L/W/H) |
mm |
1600 / 1400 / 2000 |
|
Coolant capacity |
Ltrs. |
80 |
|
Hydraulic tank capacity |
Ltrs. |
30 |
|
Total power connected |
Kw |
9 |
|
Machine Weight |
Kgs. |
2000 |
|
CNC System |
|
|
Note:
Design and Development
are subject to change
without prior notice.

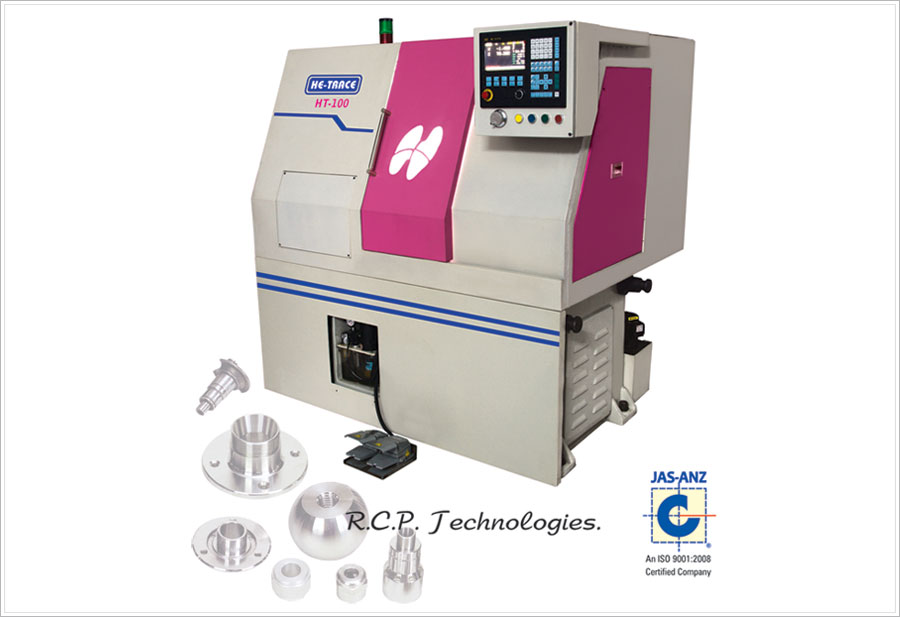

All the parts shown in
photo are not included
in standard accessories. |
|
